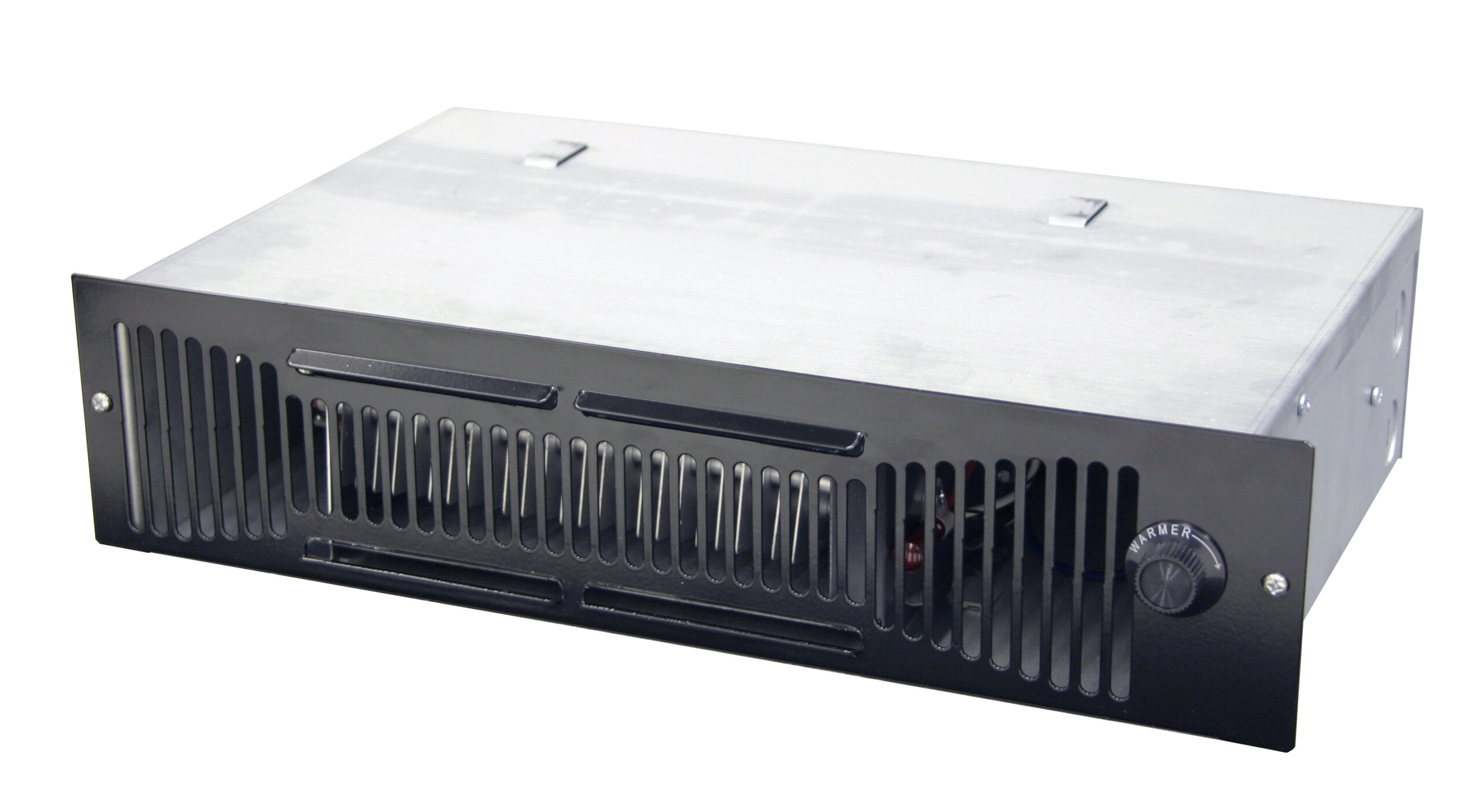

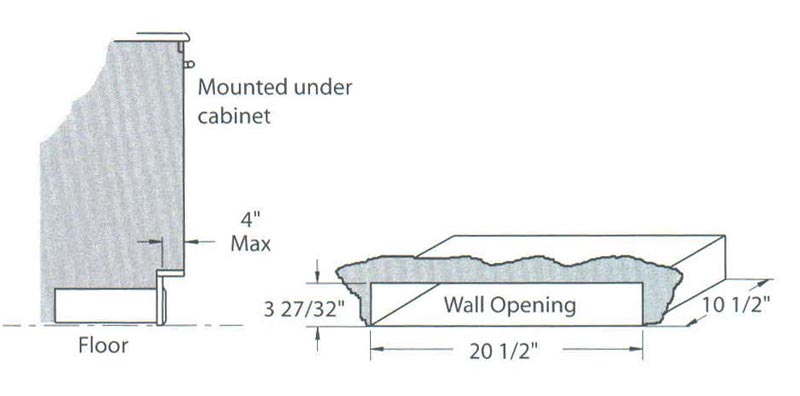

938 Series Fan-Forced Toe-Space Heater

This electric toe kick heater installs under cabinets in kitchens, bathrooms, stairwells and more — providing floor-level warmth whenever you need it. Get quiet, even heat in a slim design that saves wall and floor space.

  • Tangential blower for quiet operations
  • Ability to reduce wattage by half when needed
  • Thermal cutout indicated with pilot light protects against overheating
  • Steel plate finned element In a uniform grid pattern for uniform heating
  • Built-in thermostat models available
  • Three-piece construction for easy installation
  • Use with built-in thermostat or remote wall-mounted thermostat



Approvals

Product Inquiry

Standard Features

BACK BOX: The back box shall be commercial grade galvanized steel and shall contain knockouts through which field wiring leads enter the box. A ground wire pigtail lead shall be attached to the back box.

INNER FRAME ASSEMBLY: The inner frame assembly shall consist of a commercial grade galvanized steel chassis on which are mounted the heating elements, fan motor and tangential blower, and over temperature protectors. The inner frame assembly shall be completely prewired with a plug connection for power wiring. Pigtail leads are provided for thermostat wiring. The inner frame assembly shall lock into the back box without fasteners.

HEATING ELEMENT: The heating element shall be of non-glowing design consisting of 80% nickel, 20% chromium resistance wire enclosed in a steel sheath to which steel plate fins are brazed. The element shall cover the entire air discharge area to ensure uniform heating of all discharge air. The wattage output of the unit shall be adjustable by removing a jumper wire.





MOTOR AND CONTROLS: The fan motor shall be impedance protected and permanently lubricated. An optional single pole thermostat accessory shall be specified when the unit will not utilize a single pole wall thermostat.

Note: Three conductor wire is required when a two pole thermostat is used. The over temperature protector shall be bi-metallic, snap-action type designed to shut off heater in the event of overheating. A pilot light shall be provided that will illuminate if the over temperature protector operates. A thermal fuse shall provide secondary thermal cut-out for added safety

FRONT COVER: The front cover shall be of commercial grade steel finished in Black or White polyester powder paint. It will attach to the back box with two screws.

Technical Specifications

  • Temp Range: 45°–85°F

Applications

  • Kitchens
  • Bathrooms
  • Offices
  • Small Stairwells
  • Small Waiting Rooms
