926 Series Unit Heater
The 926 Series unit heater is designed for industrial and commercial applications.
Standard Features
Large Capacity
Heavy-duty construction with ratings up to 60 kW at 2000 CFM.
Control Options
Wide range of factory built-in or field installed control options to meet job specifications.
These units are not for residential use in the United States.
Single Point Electrical Hook-up
Heater, fan motor and controls are all connected to the same branch circuit. Field connections and built-in controls are easily accessed in the side-mounted control compartment.
Discharge Direction

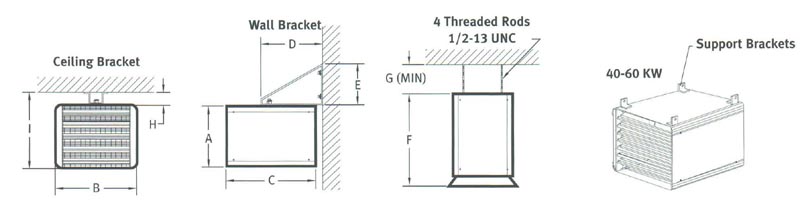

The 926 Series heater may be mounted horizontally using one of two brackets (supplied) or vertically using four threaded rods (not included).
Standard Construction Features
Heating Elements
Industrial grade stainless steel tubular elements in 2-10 kW units and steel finned tubular elements in 15-60 kW units.
Housing
Cabinet is constructed of 18 and 20-gauge steel finished with durable almond epoxy-polyester powder paint.
Outlet Grille
The outlet grille has individually adjustable louvers to direct airflow. A protective outlet mesh screen, provided on 2-30 kW heaters, allows for lower mounting heights.
Fan Motor
Totally enclosed, thermally protected motor with factory-lubricated ball bearings (except for 15 to 25 kW at 208/240V) operates at 58 dBA (2-10 kW), 67 dBA (15-30 kW) or 77 dBA (40-60 kW). Blow-through design reduces motor operating temperature for longer life.
Built-in Controls
Include 240/208 volt control circuit (with transformer if necessary), automatic reset thermal cutout, fan override and factory-installed contactor. Power fusing is supplied for heaters over 48 amps.
Mounting Bracket
Wall and ceiling bracket provided with each unit under 40 kW for horizontal mounting. 40-60 kW heaters furnished with four corner support brackets for ceiling mounting.
Installation Requirements
For best performance, do not install unit heaters above recommended maximum mounting heights of 2-10 kW, 8-feet; 15-30 kW, 10-feet; 40-60 kW, 15-feet. All but 40-60 kW heaters can be installed at lower mounting heights. Minimum height for 40-60 kW heaters is 8-feet. Maximum ambient room temperature for proper operation is 85°F.
Applications
Garages
Mechanical Rooms
Stairwells
Vestibules
Warehouses
Workshops
