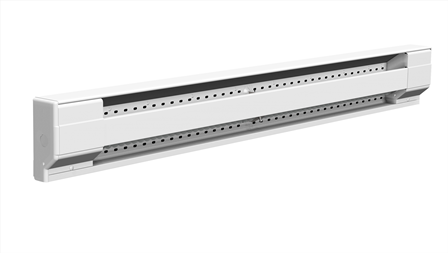

903 Series General Compact Baseboard Heater

  • Ideal for basic, zoned primary/secondary heating
  • No fans; convection heat minimizes air flow, reducing flow of bacteria and dust
  • Commercial-grade 18-gauge cold rolled front cover and brackets allow heater to withstand rigors of commercial applications
  • Steel-sheathed heating element combines the durability of a steel tubular heater with the excellent heat transfer characteristics of aluminum fins
  • Built-in wire-way facilitates end-to-end installation of continuous-run heaters
  • Large, pre-wired junction boxes at each end are provided with knockouts in the rear, bottom, inside and outside
  • High temperature safety limit for added protection in case of airflow blockage
  • Pre-notched marks for mounting guide
  • UL-listed for installation flush to any wall and flat on any floor type
  • Chimney-fin element designed for maximum air circulation
  • Air flow directed away from walls to help prevent wall streaking



Approvals

Product Inquiry

Standard Features

COMMERCIAL

ENCLOSURE: The heaters shall be fabricated of minimum .024 inch steel with minimum .040 inch steel control boxes. Support brackets shall be .035 inch steel. Junction box enclosure to have provisions for incoming and outgoing cable with cable clamp for restraining without additional hardware. Ground wire pigtail provided in each junction box for grounding.

FRONT COVER: The front cover shall be fabricated of minimum .048 inch steel.



LIGHT COMMERCIAL

ENCLOSURE: The heaters shall be fabricated of minimum .024 inch steel with minimum .035 inch steel control boxes. Support brackets shall be .035 inch steel. Junction box enclosure to have provisions for incoming and outgoing cable with cable clamp for restraining without additional hardware. Ground wire pigtail provided in each junction box for grounding.

FRONT COVER: The front cover shall be fabricated of minimum 0.26 inch pre-painted steel.



FRONT COVER: The front cover shall be fabricated of minimum 0.26 inch pre-painted steel.

HEATING ELEMENT: The heating element wire shall consist of 80% nickel, 20% chromium, and shall be encased in steel sheath to ensure long and trouble free life. Aluminum fins shall be so designed as to block sheath radiation to front and back of heater body and pressure bonded to steel sheath.

INSTALLATION: Heaters shall be designed to permit use of supply conductors with 60°C insulation.

GENERAL: Light gauge housing units available in white or beige textured finished, and heavy gauge units available in beige only textured finished. All finishes are polyester powder coat for corroison resistance. Linear thermal cut-out shall be factory installed to automatically shut off heater in event of overheating and reactivate heater when temperatures return to normal. The complete heater shall have a height of 6 3/4 inches and a depth of 2 7/8 inches. Heaters shall have cULus approval for mounting on any floor surface including carpeting.

Applications

  • Bedrooms
  • Living/Family Room
  • Kitchens
  • Bathrooms
  • Basements
  • Offices
  • Conference Rooms
  • Hallways
  • Waiting Rooms
